Magico A3 Floorstanding Speaker

Regular price $17,290.99

Magico is sold in-store - please call

Magico A3 Floorstanding Speaker

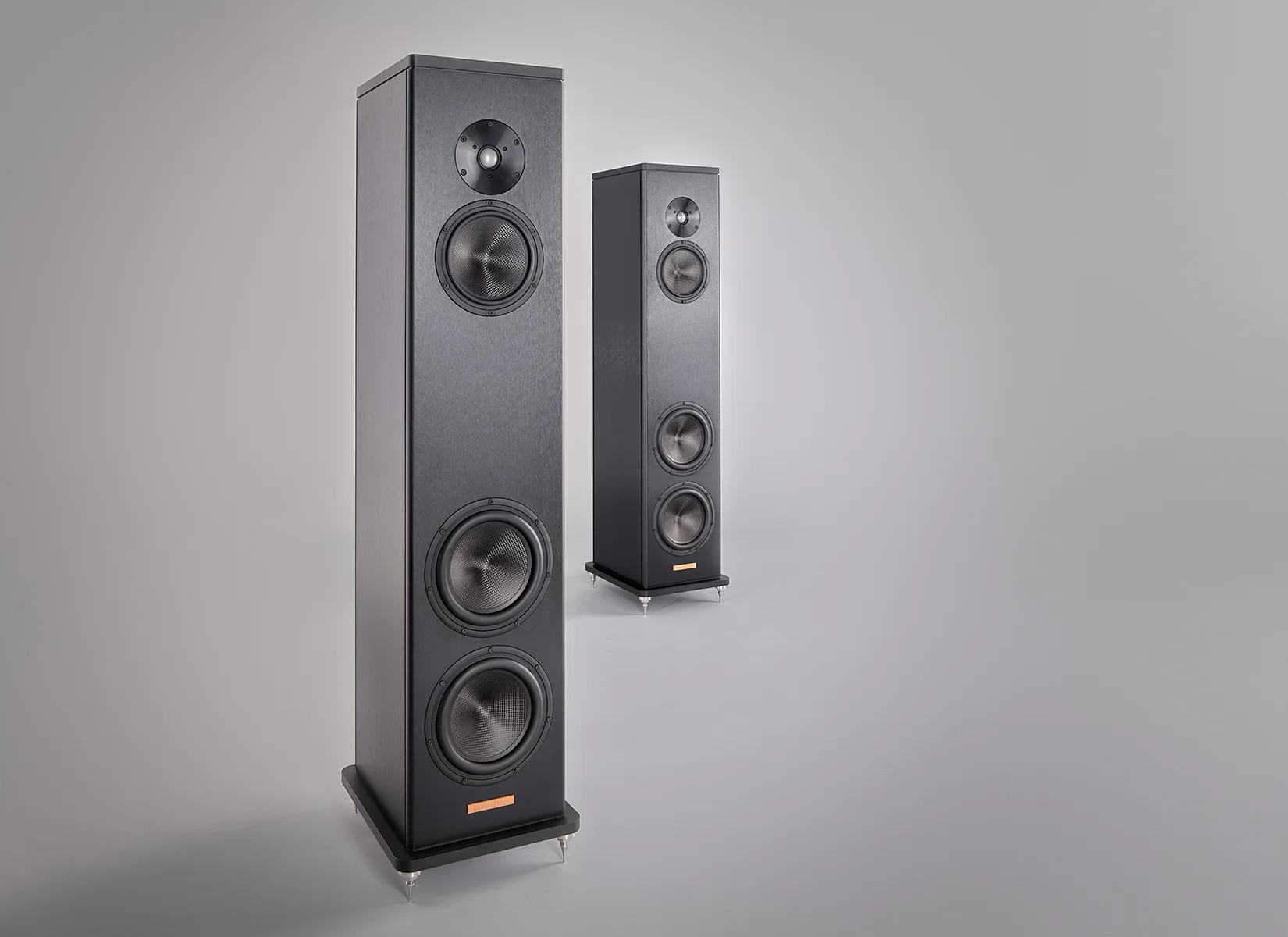

The Magico A3 is a full-range three-way, four-driver floor standing speaker. The inspiration for the new Magico A3 was driven by the engineering challenge to create not only a full range loudspeaker that incorporates similar design philosophies found in higher-end Magico offerings but to provide an entry-level category that is accessible to a new and wider audience of music enthusiasts.



The A3 enclosure is formed with machined 6061 T6 aircraft grade aluminum and includes a complex internal bracing structure that increases the stiffness and mass of the enclosure while minimizing overall resonance. A calibrated sub-enclosure provides an optimized environment for the midrange driver to operate within and without any interaction from the back wave pressure of the bass drivers. The black brushed aluminum enclosure is lustrous and stands firmly on a 4-point spiked outrigger base which provides perfect coupling to the floor for enhanced dynamic range.



Extended high frequencies are provided by a newly designed Magico pure beryllium-diaphragm with an optimized 28-mm dome surface that is based on the fundamental design platform of the M-Project tweeter. A customized neodymium motor system is encased in an improved back chamber with new damping materials that provide ultra-low distortion, higher power handling, massive dynamic capabilities, and extended linear voice coil movement.



A newly designed Magico 6-inch midrange driver sets a new benchmark of measured performance in both frequency bandwidth and time domains. The cone material is formulated using Multi-Wall carbon fiber and a layer of XG Nanographene, which provides optimal stiffness to weight ratio with ideal damping properties. A new overhung neodymium based motor system incorporates extra-large magnets to ensure a stabilized magnetic field in the 75-mm pure titanium voice coil.




All four drivers in the A3 are tested and optimized for acoustical, mechanical, electromagnetic, and thermal behaviors using the latest state-of-the-art Finite Element Analysis simulation testing equipment and are acoustically integrated using Magico’s exclusive Elliptical Symmetry Crossover topology that utilizes state-of-the-art components from Mundorf of Germany. The 3-way dividing network features a 24db per octave Linkwitz-Riley filter that maximizes frequency bandwidth while preserving phase linearity and minimizing intermodulation distortion.

Grilles are optional and available upon request and under separate order.

Reviews

"There are loudspeakers, and then there are High-end Audio Loudspeakers. The Magico A3's laboratory-like precision and stand out organic potent nature allows for an extraordinary musical voyage. Right out of the box, they are capable of painting the mightier portion of sonic canvas with completely unexpected mastery. Calling them an entry-level speaker would not do Alon or his team justice. They may not sport the S series’ curved design cues, or the M series’ carbon side panels and other upper echelon paraphernalia, yet these are by all accounts, tried and true, full-blooded Magico loudspeakers"

Mono and Stereo - read the review

Stereo Sound Japan  Grand Prix Award: A3

Diapason D’or  Golden Tuning Award: A3
Salonav (Russia) Editor’s Choice Award: A3
Super AV Hong Kong  Outstanding Overall Performance: A3

SPECIFICATIONS


Driver Complement:
1 X 1.1” (2.79cm) Beryllium Dome Tweeter
1 X 6” (15.24cm) Graphene Nano-Tec Midrange
2 X 7” (17.78cm) Graphene Nano-Tec Bass

Sensitivity: 88dB

Impedance: 4 Ohms

Frequency Response:
26 Hz – 50 KHz

Recommended Power:
50 watt RMS (min) / 300 watts (max)

Weight: 110 lbs. (49.89 kg)

Dimensions:
44”H x 11”D x 9.25”W (112cm x 27cm x 23cm)
