Yamaha RX300A
The Yamaha RX300A is a 5.2-channel entry-level home theater AV receiver featuring Dolby Atmos, 4K120/8K HDMI connectivity, and Bluetooth 5.3 Multipoint
Audio Tech: Dolby Atmos, DTS Virtual:X, and automatic room correction.
Video Handling: 4K120Hz and 8K60Hz pass-through with 4 HDMI inputs and 1 output supporting eARC.

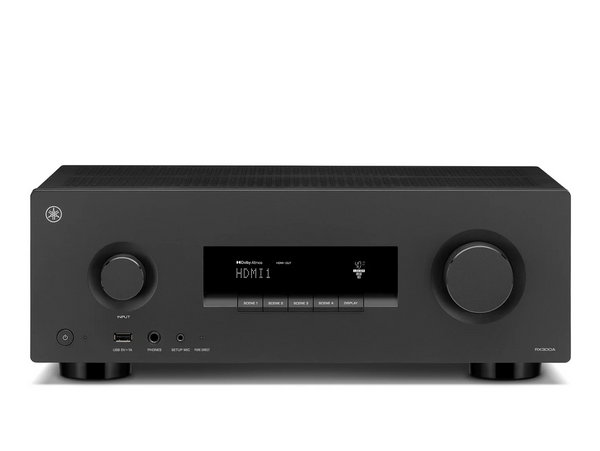

Design & Build: Features a minimalist front panel with the Yamaha tuning fork logo and dual subwoofer pre-outs.
Specifications
Dolby Atmos and DTS Virtual:X
HDMI 2.1 connectivity with 4K/120Hz and 8K/60Hz passthrough
70 watts of power per channel
Audio and Power Specifications
Channels: 5 physical amplifier channels with support for up to 2 subwoofers (5.2-channel or 3.2.2-channel setups)
Power Output: 70W per channel (8 ohms, 20 Hz–20 kHz, 0.09% THD, 2 channels driven)
Impedance Support: 6 to 8 ohms
Sound Processing: Dolby Atmos, DTS Virtual:X, and Yamaha Automatic Room Correction
Video and Gaming Features
HDMI: 4 inputs and 1 output (supporting 40 Gbps bandwidth)
Video Passthrough: 8K/60Hz and 4K/120Hz
Gaming Tech: ALLM (Auto Low Latency Mode) and VRR (Variable Refresh Rate)
HDR Support: Dolby Vision and HDR10+
Audio Return: HDMI eARC
Connectivity and Control
Wireless: Bluetooth 5.3 with Multipoint for connecting two devices at once
Inputs: 2 analog RCA, 1 optical, 1 coaxial, and 1 USB port (for firmware updates and mass storage audio playback)
Network/Streaming: No built-in Wi-Fi or Ethernet port (Bluetooth only)

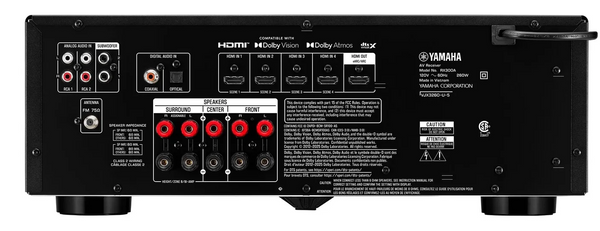

Outputs: 2 subwoofer pre-outs, speaker binding posts, and Zone B support
