pre order for delivery approx end July
Eversolo DMP-A8 Master Edition Gen II
The Master Edition adds CD playback/ripping transport and an upgraded femtosecond clock system for lower jitter and higher digital purity
The top-loading CD mechanism is specifically developed for audio playback and bit-perfect CD ripping.
The Master Edition includes an upgraded high-precision OCXO (Oven Controlled Crystal Oscillator) clock, Femtosecond clocks, and external 10MHz clock input.
Upgrades in the Gen 2 Series
The Gen 2 lineup (which includes a standard model and the premium Master Edition) improves on its award-winning predecessor with several standout features:
Flagship DAC Architecture: Features the top-tier AKM AK4499EX DAC paired with the AK4191EQ digital processor, which isolates digital processing noise from the analog conversion for an ultra-low noise floor.
Pure Analog Preamp: Includes a true fully balanced analog preamplifier stage with an R-2R resistor ladder volume control, preserving signal integrity without dynamic compression.
Upgraded Connectivity: Adds a dedicated subwoofer output (with adjustable crossover) and an SFP fiber network port for optical galvanic isolation to eliminate electrical noise from your home network.
Massive Processing Power: Upgraded with a 64-bit octa-core processor and 8GB of RAM, allowing the system to scan and index local music libraries of up to 200,000 tracks in just about 2 hours.
Specifications

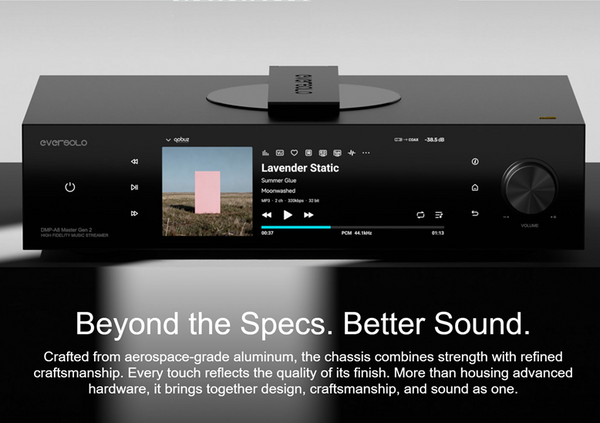

- Display: 8.6-inch LCD Touchscreen
- Storage: 8 GB DDR5 + 64 GB eMMC
- DAC: AK4499EXEQ + AK4191EQ
- The top-loading CD mechanism is specifically developed for audio playback and bit-perfect CD ripping.
- Audio Processor: Eversolo AuralEngine: Operational Amplifiers: OPA1612
- Power Supply: High-quality, low-noise dual power supply with separate linear and digital power sections
- Audio Clock: high-precision OCXO (Oven Controlled Crystal Oscillator) clock
- SSD Protocol: M.2 NVMe PCIe 3.0, 2280 form factor, supporting SSDs up to 8 TB
- Ethernet: RJ-45 (10/100/1000Mbps)
- WiFi: Dual-band Wi-Fi 6 (2.4G + 5G)
- Music Services
- TIDAL, Qobuz, HIGHRESAUDIO, Amazon Music, IDAGIO, Calm Radio, Internet Radio, TuneIn, Radio, Paradise, Deezer, SoundCloud, Presto Music, Apple Music...
- Music Streaming: Spotify Connect Lossless, TIDAL Connect, Qobuz Connect, DLNA, Network Audio Adapter, and more...
- SFP Fiber Network: SFP module sold separately. Supports single-mode single-fiber, single-mode dual-fiber optical modules, and SFP copper Ethernet modules.

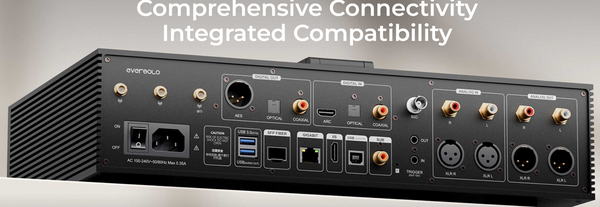

- Audio Inputs & Outputs
- Bluetooth Input: Bluetooth BT 5.4
- USB-B Audio Input: USB compatibility: Windows 10/11, macOS, Android, and iOS. Supports up to stereo DSD512 and PCM 768kHz/32bit.
- Optical/Coaxial Input: Supports up to stereo PCM 192kHz/24bit and DSD64 via DoP.
- HDMI ARC/eARC Input: Supports up to stereo PCM 192kHz/24bit.
- Analog Audio Input: XLR balanced + RCA pre-input. Input range: RCA maximum 2.1 Vrms; XLR maximum 4.2 Vrms.
- USB Audio Output: Supports up to stereo Native DSD512 and PCM 768kHz/32bit. Compatible only with UAC-compliant USB DACs.
- IIS Audio Output: Supports up to stereo Native DSD512 and PCM 768kHz/32bit.
- Optical/Coaxial Output: Supports up to stereo PCM 192kHz/24bit and DSD64 via DoP.
- AES/EBU Output: Supports up to stereo PCM 192 kHz/24-bit and DoP64.
- Analog Audio Output: XLR balanced + RCA pre-output.
- Audio Characteristics
- XLR Output Audio Characteristics: Output Level: XLR 4.2 V
- Frequency Response: 20 Hz–20 kHz, XLR/RCA ±0.25 dB
- THD+N: 0.000075% (-122 dB)
- Dynamic Range: XLR >129 dB
- SNR: XLR >129 dB
- Crosstalk: XLR >133 dB
- RCA Output Audio Characteristics
- Output Level: RCA 2.1 V
- Frequency Response: 20 Hz–20 kHz, XLR/RCA ±0.25 dB
- THD+N: 0.000086% (-121 dB)
- Dynamic Range: RCA >127 dB
- SNR: RCA >127 dB
- Crosstalk: RCA >131 dB
- Other Information

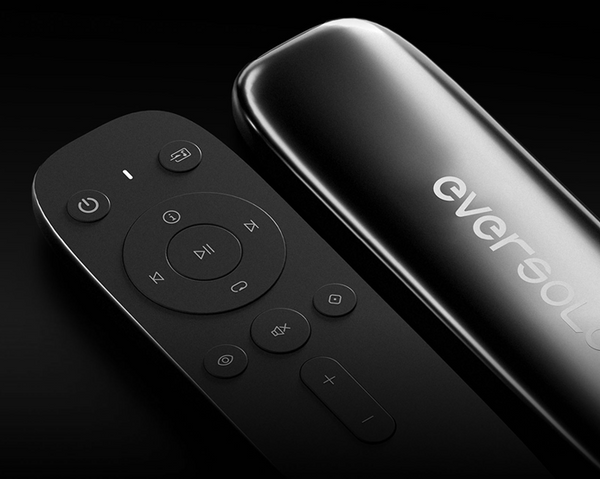

- Control Methods On-screen Touch Control, Eversolo Control, and Remote Control
- Power Supply AC 110–240 V, 50/60Hz
- Rated Power 30 W
- Dimensions 388 × 265 × 88 mm (L × W × H)
- Packing List Remote Control × 1, Power Cable × 1, Product Manual × 1, Screwdriver × 1
- Net Weight 5.25 kg
- Gross Weight 7.7 kg
