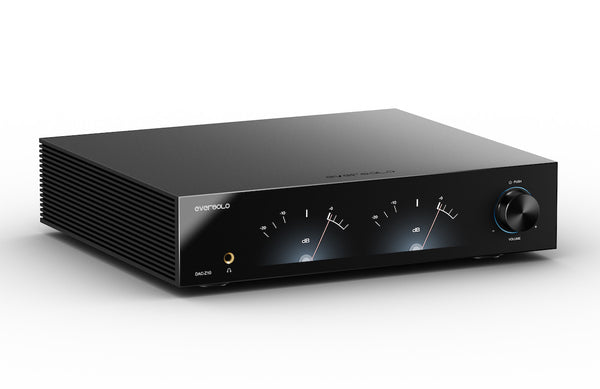

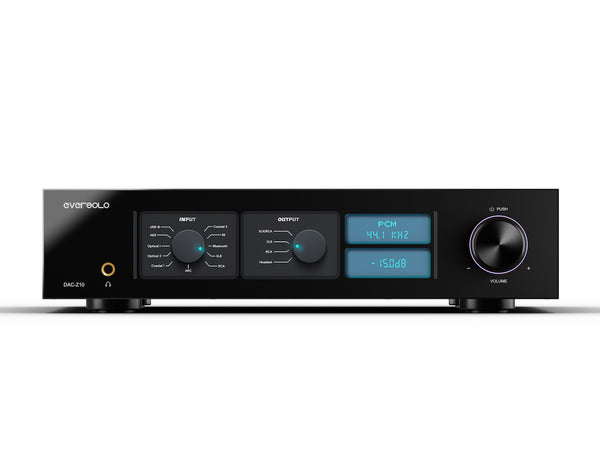

DAC-Z10 Digital-to-Analog Converter
If you took the digital output of your CD player and fed it into the Z10 DAC, the poor thing would think it went to a wellness retreat.
Likewise your TV. And your Streamer.
From digital to analog, the DAC-Z10 lets music unfold in its purest form as a DAC that reveals the authentic character and finest details of sound.
Real Engineering
The DAC-Z10 is built on Eversolo’s Fully Isolated Architecture (FIA), which completely separates the digital and analog domains to minimize interference and preserve signal purity.
Three Independent Power Supplies
With three independent toroidal transformers for left channel, right channel, and system power, the DAC-Z10 maintains ultra-low noise down to 42μV. This design minimizes interference, giving each channel its own clean, isolated voltage support for a stable and detailed sound.
Dual Decoding Modules
Built on a fully balanced architecture, the DAC-Z10 features dual independent AK4191 + AK4499 DAC modules for the left and right channels. Combined with AKM’s Velvet Sound™ technology, it strikes the perfect balance between precision and tonal richness. Enjoy native support for DSD 512 and PCM 768kHz/32Bit.
R2R Volume Control
The DAC-Z10 employs a precise R2R resistor array for volume control, preserving the original signal at every level. From quiet listening to full volume, every nuance remains intact, delivering clean, accurate, and faithful sound.
Fully Balanced Preamplifier
The DAC-Z10 features a high-performance fully balanced preamplifier, supporting both XLR and RCA analog inputs with up to +10dB gain. Paired with a precision R2R analog volume control network, it delivers ultra-low noise and distortion, significantly enhancing dynamic range and signal integrity, allowing every nuance of the music to be reproduced with clarity and authenticity.
Isolated AES/EBU Input
To preserve signal purity, the DAC-Z10 features a dedicated isolated AES/EBU input, fully separating electrical noise between front-end and back-end devices. This isn’t just an engineering solution—it’s our commitment to pure sound.
Dual Optical Inputs
The DAC-Z10 supports dual optical inputs, offering greater flexibility and connectivity for your audio system. With dual optical inputs, the DAC-Z10 can connect to two audio devices simultaneously, providing a more versatile listening experience.
Pure USB Audio Input
USB is often the most convenient choice for digital audio, but electrical noise and ground loops can subtly compromise its purity. The DAC-Z10 introduces an isolated USB Audio input, transmitting only the clean data while blocking all electrical interference.
Phase-Locked Loop Technology
The DAC-Z10 integrates an OCXO temperature-controlled crystal oscillator and PLL (Phase-Locked Loop) technology to achieve precise clock reconstruction. Accurate timing is fundamental to high-resolution audio reproduction, and with the stability of the OCXO and the precision of PLL correction, the DAC-Z10 ensures that every note is delivered exactly as intended.
External Clock Support
Accurate timing is key to capturing every musical nuance. By supporting external high-precision clock, the DAC-Z10 takes clock stability and accuracy to the next level.
FPGA Redefined
The DAC-Z10 features a built-in FPGA that shapes IIS data and refines the clock. Every digital signal is thus optimized to its purest form before reaching the DAC — you can truly hear the difference.
HDMI ARC Integration
DAC-Z10 is equipped with HDMI ARC, supporting both ARC and eARC modes for effortless integration into your home theater system. It not only decodes high-fidelity music but also delivers cinematic sound with stunning clarity and realism.
6.35mm Headphone Amplifier Module
The DAC-Z10 has a dedicated 6.35 mm headphone amplifier module that auto-detects impedance and adjusts gain, delivering powerful, detailed sound. High, medium, and low gain settings let you tailor playback to different headphones and listening preferences.
Bluetooth Module
The DAC-Z10 features a built-in Qualcomm QCC5125 Bluetooth module. Whether streaming from your phone or connecting directly via tablet, it delivers a convenient wireless listening experience.
Reviews
"The DAC-Z10 has its focus squarely on sound quality, offering top-notch conversion and wide-ranging connectivity without breaking the bank."
read the review in HiFi News
Specifications
- Is a Streamer: ❌ No
- DAC: dual independent AK4191 + AK4499 DAC modules for the left and right channels
- Clock: ✅ Yes OCXO temperature-controlled crystal oscillator and PLL (Phase-Locked Loop)
- Linear Power supply ✅ Yes
- Bit Rate Capability: 32 bit/768 kHz
- USB Input for Computer: ✅ Yes
- HDMI ARC Input: ✅ Yes
- USB Input for Attached Storage: ✅ Yes

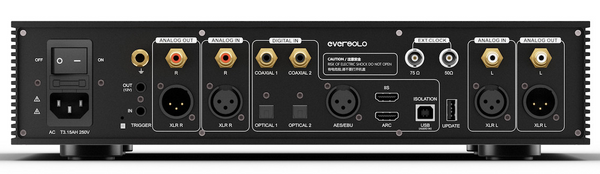

- Digital inputs: ✅ Yes Opt (2) Coax (2) I2S (1) AES/EBU (1)
- Analog outputs: RCA (2) XLR (2)
- Headphone Amp: ✅ Yes Adaptive gain output up to 1 W at 16 Ω ensures compatibility with a wide range of headphones.
- Variable Audio Out: ✅ Yes A discrete R2R resistor network handles volume control in the analog domain, preserving every microdetail at all levels
- Roon Ready: ✅ Yes
Detailed Specifications
Model Eversolo DAC-Z10

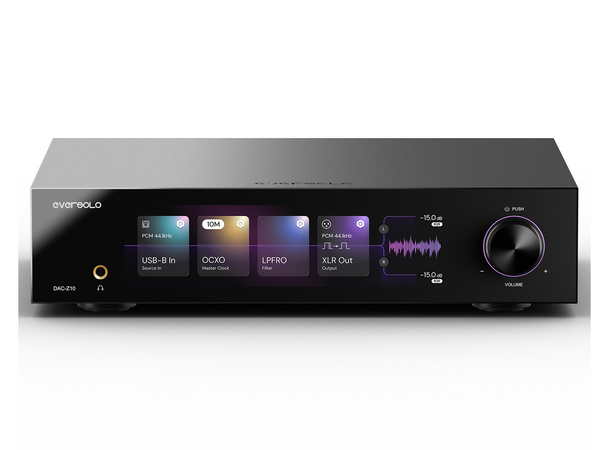

Display 8.8" IPS
Chassis Material Aluminium alloy
DAC Left Channel: AK4191+AK4499 Right Channel: AK4191+AK4499
Audio Processor Multi-core USB audio processor
Power Triple ultra-low noise linear power supplies
Audio Inputs and Outputs
Bluetooth Audio Input
Qualcomm QCC5125 Bluetooth module, Bluetooth version: BT5.0; supports SBC/AAC Bluetooth audio protocols
USB-B Audio Input
Compatible with Windows 10 and above, macOS, Android, and iOS; supports up to Stereo DSD512 / PCM 768kHz 32Bit
IIS Input
Supports 8 mode configurations, up to Stereo DSD512 / PCM 768kHz 32Bit
AES/EBU Input
Up to Stereo PCM 192KHz/24Bit / DSD64 DoP
Optical Audio Inputs *2
Up to Stereo PCM 192KHz/24Bit / DSD64 DoP
Coaxial Audio Inputs *2
Up to Stereo PCM 192KHz/24Bit / DSD64 DoP
ARC Input
Up to Stereo PCM 192KHz/24Bit
Analog Audio Inputs
XLR (Balanced), RCA
Analog Audio Outputs
Pre-out: XLR (Balanced), RCA; Headphone out: 6.35mm single-ended
External Clock Input
Supports 10M/25M clock inputs with 50Ω or 75Ω impedance
Recommended Headphone Impedance
16–300Ω (Low Gain: 16–32Ω / High Gain: 32–300Ω)
Audio Characteristics
XLR Output Audio Characteristics
Output Level (Vrms): 5Vrms @ 0dBFS
THD+N @ No-wt: 0.00008% @ 1kHz (-122dB @ 1kHz)
Noise @ No-wt: <1.2uVrms
SNR @ A-wt: 130dB
Frequency Response: 20Hz–20kHz (±0.1dB)
Crosstalk: -130dB
DNR @ A-wt: 130dB
RCA Output Audio Characteristics
Output Level (Vrms): 2.5Vrms @ 0dBFS
THD+N @ No-wt: 0.000097% @ 1kHz (-120dB @ 1kHz)
Noise @ No-wt: <1.5uVrms
SNR @ A-wt: 128dB
Frequency Response: 20Hz–20kHz (±0.1dB)
Crosstalk: -123dB
DNR @ A-wt: 128dB
Headphone Audio Characteristics (Low Gain Mode)
Output Level (Vrms): 4Vrms @ 0dBFS
THD+N @ No-wt: 0.0003% @ 1kHz (-110dB @ 1kHz)
Noise @ No-wt: <2.5uVrms
SNR @ A-wt: 124dB
Frequency Response: 20Hz–20kHz (±0.1dB)
DNR @ A-wt: 124dB
Headphone Audio Characteristics (Mid Gain Mode)
Output Level (Vrms): 5.6Vrms @ 0dBFS
THD+N @ No-wt: 0.00018% @ 1kHz (-115dB @ 1kHz)
Noise @ No-wt: <2.5uVrms
SNR @ A-wt: 126dB
Frequency Response: 20Hz–20kHz (±0.1dB)
DNR @ A-wt: 126dB
Headphone Audio Characteristics (High Gain Mode)
Output Level (Vrms): 7Vrms @ 0dBFS
THD+N @ No-wt: 0.00013% @ 1kHz (-118dB @ 1kHz)
Noise @ No-wt: <2.5uVrms
SNR @ A-wt: 127dB
Frequency Response: 20Hz–20kHz (±0.1dB)
DNR @ A-wt: 127dB
Other Information
Power Supply AC 110~240V 50/60Hz
USB Port USB2.0*1（only for firmware upgrade）
Control Methods - Touchscreen control, remote control, mobile App control
Rated Power Consumption 32W
Dimensions - 365mm (L) × 310mm (W) × 88mm (H)
Warranty - 1 year parts and labor
Packing List
Remote control ×1, power cable ×1, USB data cable ×1, USB drive (for FW upgrade) ×1, TRIGGER cable ×1, polishing cloth ×1, user manual ×1
