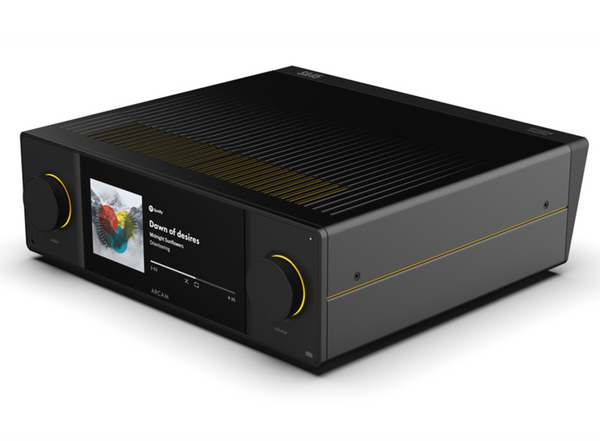

Arcam SA45 Streaming Amplifier
An ideal combination as a Living Room music and TV center
The Arcam SA45 is special due to its combination of high-performance Class G amplification, a next-generation high-resolution streaming platform, and sophisticated room correction technology. Key features include its powerful 180W per channel amplification, support for numerous streaming services, balanced digital and analog audio paths, and the inclusion of Dirac Live Room Correction for fine-tuning sound to a specific room's acoustics. It also has a large high-resolution display and comprehensive connectivity options, including MM/MC phono inputs and HDMI eARC.
Reviews
"it sounds purposeful and powerful, displaying the ‘grunt’ expected of a flagship while bringing grip and depth to percussion and basslines. This solidity continues all through the audioband, for a listening experience possessing plenty of body and heft"
"the amp’s handling of the piano samples, and that driving rhythm, elevated the track to almost hypnotic status"
read the review in HiFi News
video review - please allow 10 secs to load
Specifications
- Is a Streamer and Amplifier : ✅ Yes
- DAC: ESS ES9027SPro
- Bit Rate Capability: 32 bit/384 kHz, DSD512
- Supported Digital input sample rates: Up to 192 kHz
- Analog Input 3 x (RCA pairs), 1 x XLR (balanced pair) ✅ Yes
- Phono Input MM & MC ✅ Yes
- Digital inputs: HDMI eArc (1), Coax (2), Toslink (2), USB-A for PC
- HDMI ARC Input: ✅ Yes
- Bluetooth HD 5.4 aptX input, and output to Bluetooth headphones ✅ Yes
- Headphone out. ✅ Yes
- Variable Audio Pre Out:1 x (RCA pair), 1 x XLR (balanced pair) ✅ Yes
- Subwoofer Out: ✅ Yes, dual
- Dirac Live Room Correction ✅ Yes
-
Roon Ready: ✅ Yes, with software update

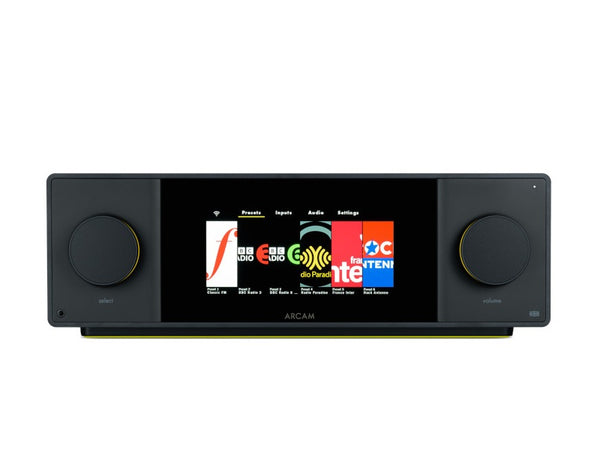

- High-resolution display for clealy visible album artwork and metadata ✅ Yes
- Supports Apple Airplay, Google Cast, Spotify Connect and Tidal Connect ✅ Yes
- Setup with ARCAM Radia App for presets, Internet Radio and Podcasts ✅ Yes
Continuous power output (0.5% THD), per channel
2 channels driven, 20Hz—20kHz, 8Ω: 180W
2 channels driven, 1kHz, 4Ω: 300W
Harmonic distortion, 80% power, 8Ω at 1kHz: 0.002%
Analogue Inputs
Number of inputs: 3x RCA pairs + 1 XLR pair
Phono Inputs: MM and MC
Frequency response: 20Hz—20kHz ± 0.2dB
Signal/noise ratio (A-wtd, ref. 50W, 1V input): 106dB
Digital Inputs
Supported Streaming media: FLAC, WAV (LPCM), AAC, ALAC, AIFF, DSD (up to 256), MP3, MP4, OGG, WMA
Supported Streaming Bit depth: 16, 24, 32
Supported Streaming sample rates (kHz): Up to 384 kHz
Gapless Playback: Yes
Digital Audio Inputs: 1x HDMI eARC, 2x Coaxial (RCA), 2x Optical (Toslink)
Supported Digital input Bit depth: 16, 24
Supported Digital input sample rates (kHz): Up to 192 kHz
Frequency response (filter 1): 20Hz—20kHz ± 0.2dB
Signal/noise ratio (A-wtd, ref. 50W, 0dBFS): 110dB
Wireless Specifications
Bluetooth Profile 5.4; A2DP Sink/Source, AVRCP, BLE, Snapdragon Sound, AAC, LE Audio, Auracast
Bluetooth Transmitter Frequency and Power:
2,402 MHz to 2,480 MHz <13dBm
Wi-Fi Network: IEEE 8002.11 a/b/g/n/ac/ax (2.4GHz/5GHz)
2.4G Wi-Fi Transmitter Frequency Range and Power:
2400-2483.5 MHz (USA 11 Channels, Europe and Others 13 Channels) <20dBm
5G Wi-Fi Transmitter Frequency Range and Power:
5150-5250 MHz <23dBm, 5250-5350 MHz & 5470-5725 MHz <20dBm, 5725-5850 MHz <14dBm
General
Mains voltage: 100V or 110–120V or 220–240V, 50–60Hz
Power consumption (maximum): 1000W
Power consumption (standby): <0.5W
Dimensions W x D (including speaker terminals) x H (including feet):
432 x 390 x 140mm
Weight (net): 17 kg
Weight (packed): 20 kg
Supplied accessories:
Mains lead(s)
Remote control with 2 x AAA batteries
Measurement Microphone
5m USB Cable
Quick Start Guide
Important Safety Instructions
Audiofi is your Arcam SA45 dealer, we ship free in Canada
