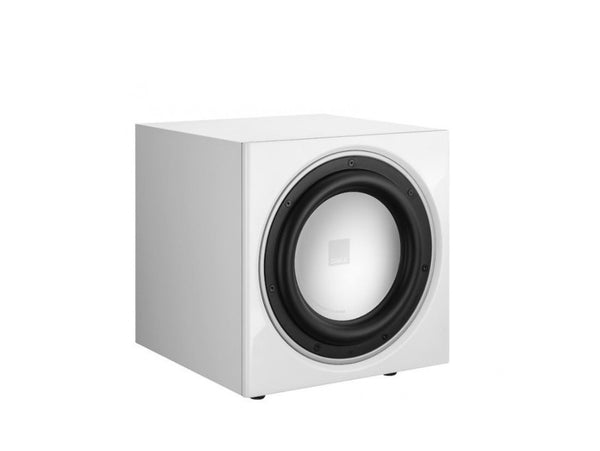

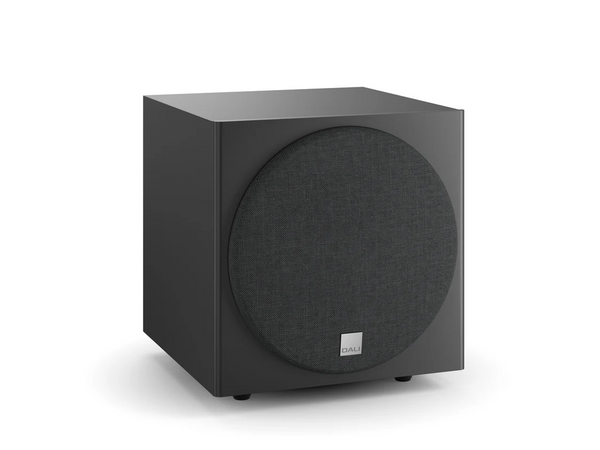

Dali E9F Subwoofer
From Denmark
The DALI E-9 F is special for its combination of a high-performance, 9-inch aluminum cone woofer, a powerful 170W Class D amplifier, and a stylish, compact design that allows for powerful and precise bass reproduction with excellent integration into a stereo or surround sound system. Key features like the downward-firing bass port and large magnet system ensure a stiff, fast-responding cone with minimal distortion, while the cabinet's elevated design and overall construction contribute to its effectiveness and sophisticated appearance.
Key Features that Make the E-9 F Special
- 9" Aluminum Cone Woofer:The E-9 F uses a stiff, lightweight aluminum cone woofer designed for speed and control, moving a significant amount of air to deliver powerful and precise bass. The aluminum's rigidity, with a Young's modulus of 69 GPa, also ensures piston-like movement, minimizing distortion.
- Powerful Class D Amplifier: A 170W RMS (220 Peak Watts) Class D amplifier provides high continuous power with absolute linearity, ensuring the audio signal's integrity and allowing the subwoofer to handle demanding audio tracks.
- Down-firing Bass Port:The woofer is paired with an oversized, downward-firing bass port, which adds "virtual cone surface" to the lowest frequencies. This design enhances bass output while reducing stress on the woofer and minimizing total distortion.

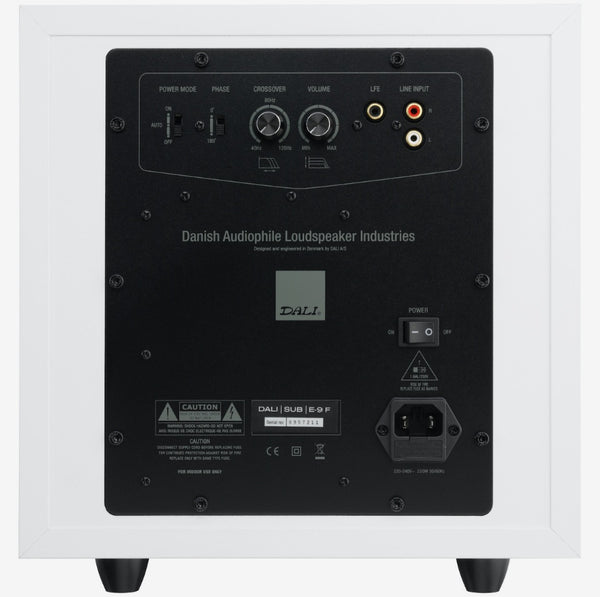

- Integrated Controls:The E-9 F includes integrated controls for volume, phase adjustment, and crossover frequency, making it easy to adjust to your system and room.
- Stylish & Compact Design:The subwoofer features a stylish cabinet design that blends effortlessly into any room. It is elevated from the floor by four oversized, cone-shaped rubber feet or polymer spikes, which also help to eliminate turbulence under the cabinet.
- Excellent Integration:The combination of a fast-responding aluminum cone and powerful amplification allows the E-9 F to integrate seamlessly with your main speakers, providing a well-balanced and dynamic low-frequency extension.
Reviews
What HiFi Award Winner - Best Cinema Package read the review
Specifications
- Driver:1 x 9" long stroke aluminum woofer
- Frequency Response +/- 3 dB 35 - 190Hz
- Amplifier:170W RMS Class D integrated amplifier
- Max. SPL:111 dB
- Crossover Frequency:40 - 120 Hz
- Enclosure Type:Bass reflex
- Connection Input:Stereo RCA, LFE (mono)
- Dimensions 12 3/32 x 11 19/64 x 12 13/63 inch
- Weight 26 lbs
