Magico A1 Speaker

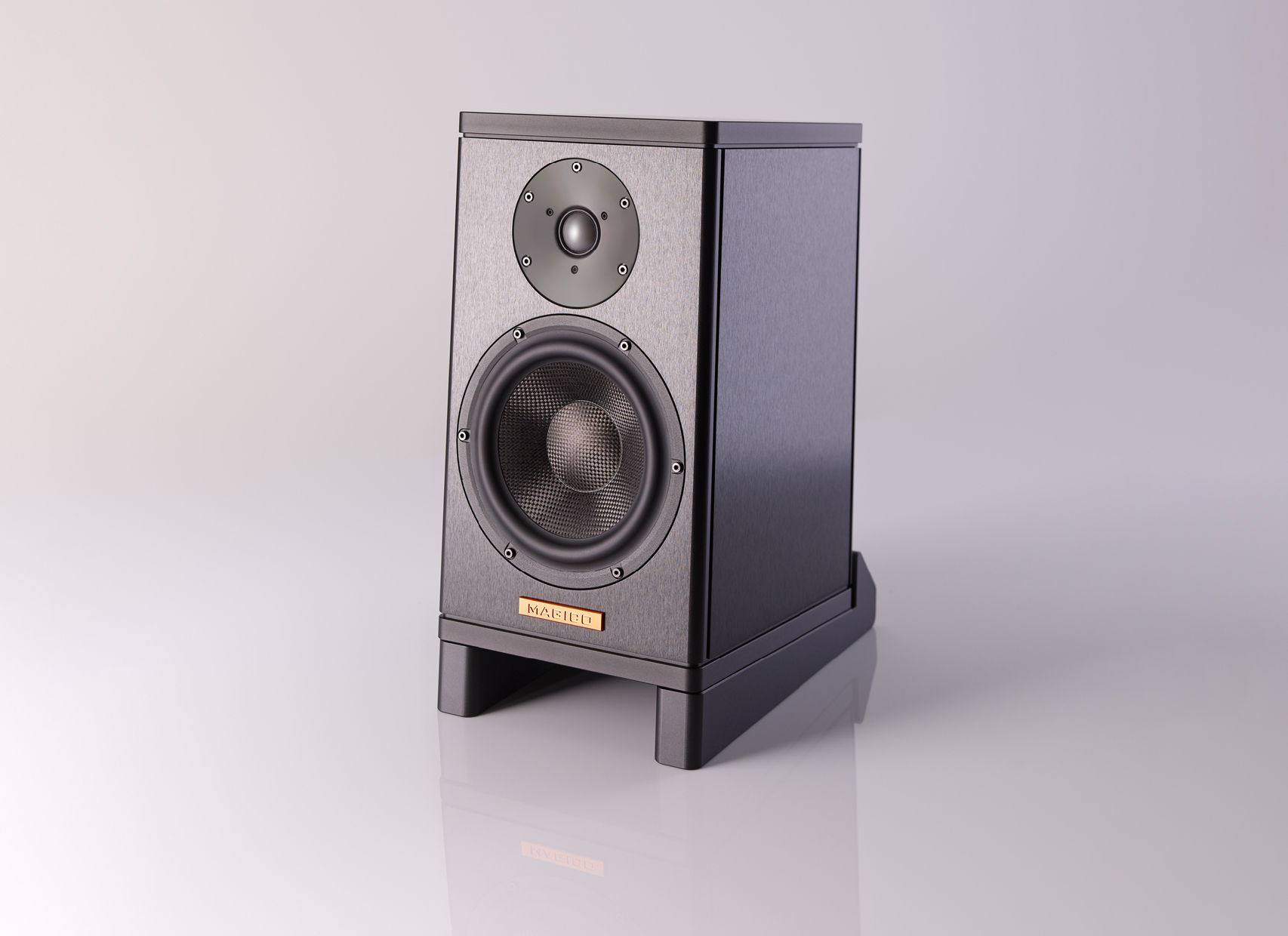

The Magico A1 is a compact hi-quality two-way bookshelf loudspeaker that features a fully braced aluminum enclosure, beryllium dome tweeter, carbon Nanographene cone, and our renowned elliptical crossover.
The A1 enclosure is constructed using 3⁄8” thick 6061 T6 aircraft grade aluminum, similar to the enclosure developed for the Q1, and is available in an elegant brushed-aluminum, black anodized finish. An innovative internal bracing technique along with the most advanced damping materials makes the sealed enclosure incredibly rigid and free of unwanted mechanical resonances. The complete enclosure design of the Magico A1 is evaluated in simulation using the latest FEA software along with physical testing to meet the uncompromising requirements of Magico for optimized enclosure rigidity, stability and to ensure benchmark acoustical standards.
Featuring the same tweeter as the full range A3, the A1 utilizes a pure Beryllium-diaphragm with an optimized 28-mm dome based on the fundamental design platform and geometry of our reference M- Series tweeter. The customized neodymium motor system is encased in an improved back chamber with our latest generation damping materials that facilitate ultra-low distortion, higher power handling, massive dynamic capabilities, and extended linear voice coil movement.
The newly developed 6.5-inch mid-bass driver features a Multi-Wall carbon fiber cone with a layer of XG Nanographene, providing optimal stiffness to weight ratio and an ideal damping factor. The driver frame has been designed, simulated, and tested for the optimal combination of stiffness and damping. The minimum acoustical impact is achieved by reducing vibration modes while maximizing airflow. The motor system incorporates extra-large magnets to ensure a stabilized magnetic field in the 39- mm pure titanium voice coil. The A1 mid-bass driver is optimized for minimal music-related distortions in its bandpass, in both the frequency and time domains using state-of-the-art finite element analysis simulation of acoustical, mechanical, electromagnetic, and thermal behavior.
Reviews
Triple win for Magico A1
HiFi Plus Product of the Year
“If you want uncompromising sound in a room compromised by its own size, the A1 is one of the few to really meet those demands.”
read the review in HiFi +
The SoundStage! Product of the Year
"Magico’s A1 is an entry point to a rarified level of performance that leaves even similarly priced rivals in the shade. Flexible when it comes to placement, thanks to its infinite baffle design, this is a cabinet that you can stand anywhere and in doing so understand what all the fuss is about when it comes to high-end sonics. Hell, it even puts intermediate-sized floorstanders to shame. If you’re lucky enough to afford it, it simply demands an audition. Otherwise, it’s time to start saving your pocket"
read the review in HiFi Choice
Specifications
- Driver Complement:
- 1 X 1.1” (2.79cm) Beryllium Dome Tweeter
- 1 X 6.5” (16.51cm) Graphene Nano-Tec Midbass
- Sensitivity: 84dB
- Impedance: 4 Ohms
- Frequency Response:
- 35 Hz – 50 KHz

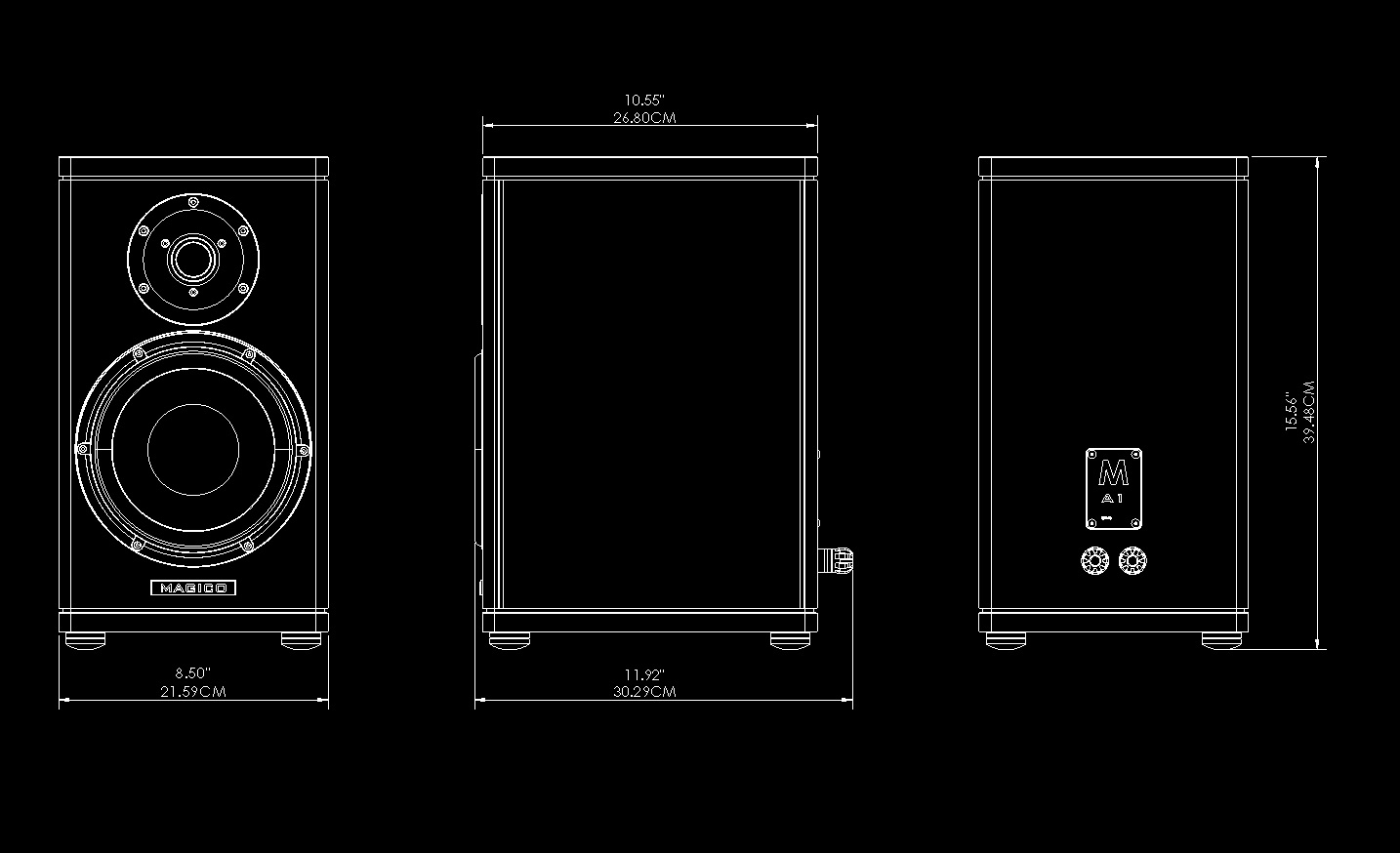

- Dimensions: 15.6”H x 12”D x 8.5”W (39.62cm x 30.48cm x 21.59cm)
- Weight: 48 lbs. (22 kg)
Audiofi is your Magico A1 speaker dealer in Vancouver Canada
